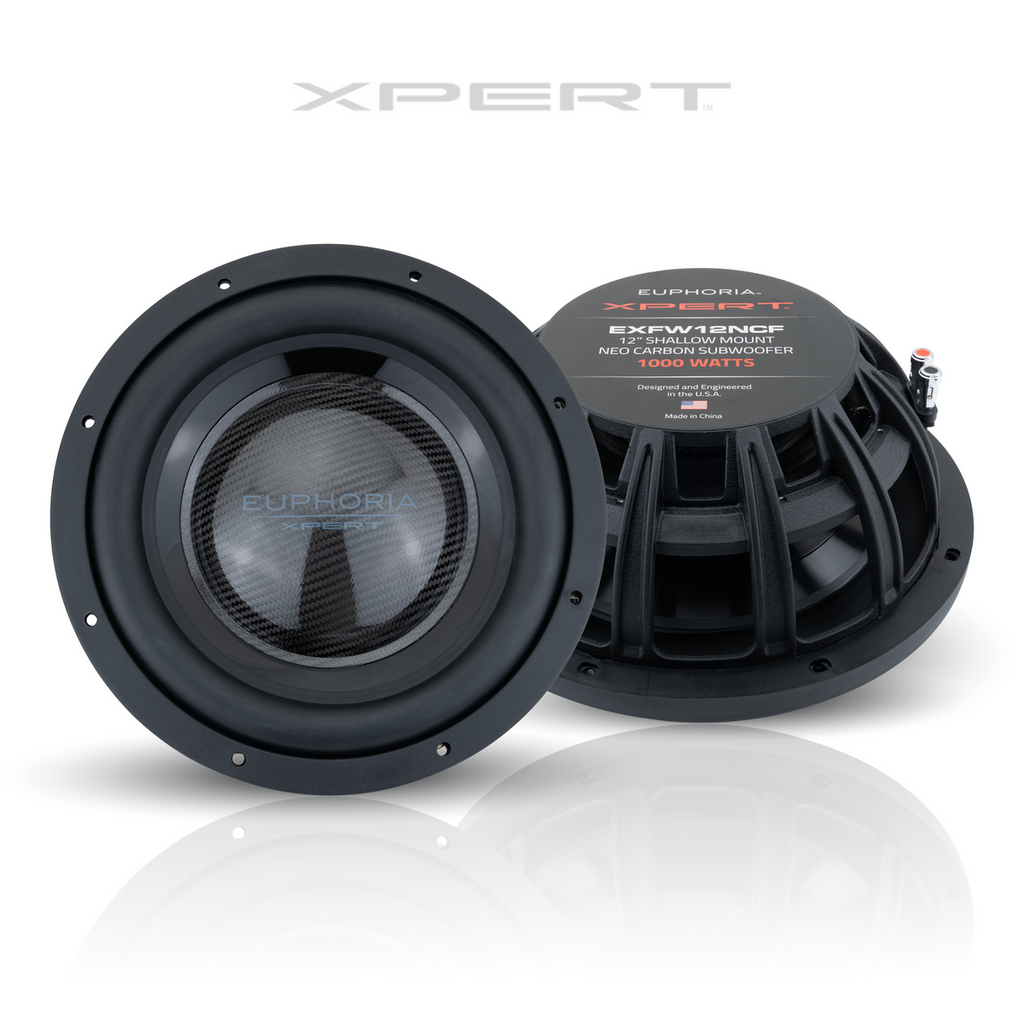

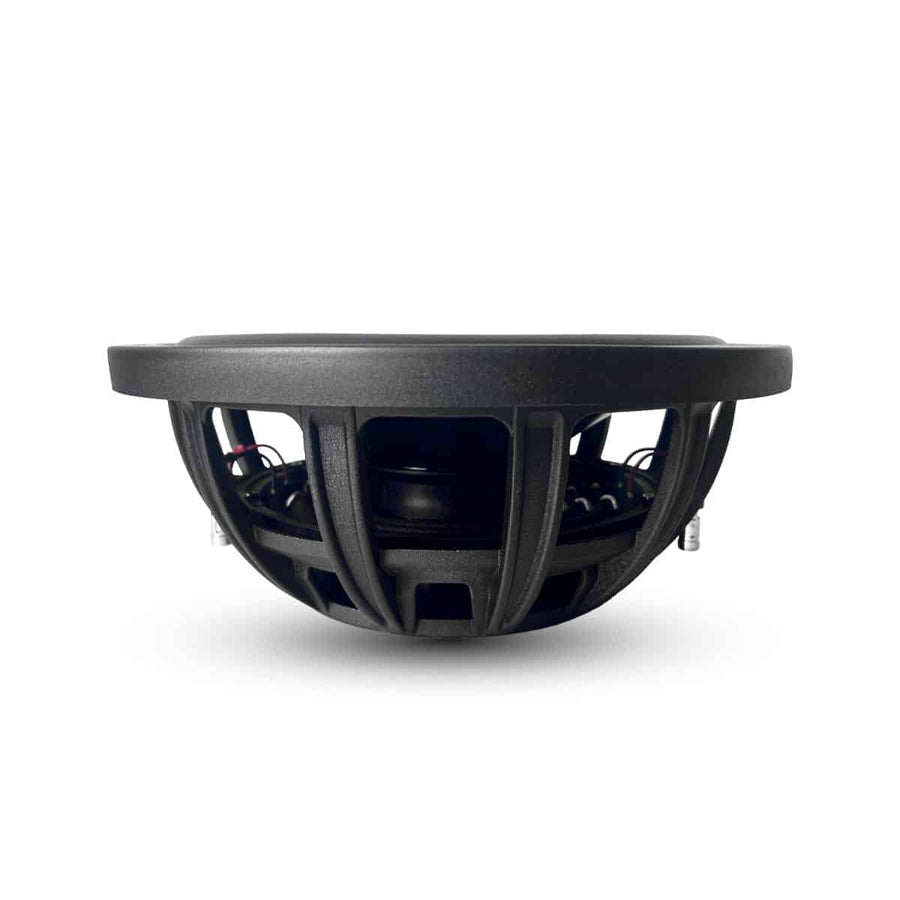

Xpert EXFW12NCF Shallow 12" Sub (Sold as Single)
XPERT EXFW12NCF
EXFW12NCF : 12in NEO Carbon Fiber Shallow Woofer
Feel the XPERT difference with the EXFW12NCF, a 12-inch NEO Flat Carbon Fiber Subwoofer designed for deep, impactful bass. Featuring a carbon fiber cone, die-cast aluminum basket with radial venting, and a weather-resistant cone and surround, it ensures durability and superior sound clarity. Equipped with a neodymium radial magnet motor, dual 4Ω voice coil, and large gauge compression terminals, this subwoofer delivers exceptional performance. Complete with a protective PVC gasket, the EXFW12NCF combines innovation and engineering excellence for an unparalleled audio experience
FEATURES:
- 12″ Shallow Mount Neo Carbon Subwoofer
- 2.5″ Voice Coil
- Die-Cast Aluminum Basket with Radial Venting
- Large Gauge Compression Terminals
- Rubber Surround
- Carbon Fiber Cone
- Neodymium Magnet
- Weather Resistant Cone and Surround
- PVC Gasket
- Dual 4Ω 4 Layer Voice Coil
SPECIFICATIONS:
| Nominal Power Handling | 500 Watts |
| Dynamic Wattage |
1200 Watts |
| Resonant Frequency (fs) |
33.791Hz |
| D.C. Voice Coil Resistance (Re) |
7.2Ω |
| Mechanical Quality Factor (Qms) |
1.598 |
| Electrical Quality Factor (Qes) |
0.431 |
| Total Quality Factor (Qts) |
0.340 |
| Compliance Equivalent Volume (Vas) |
30.706m |
| Mechanical Compliance (Cms) |
82.905 mm/N |
| BL |
30.800 N/A |
| MMS |
267.589 g |
| SPL | 86.3 dB |
| X-MAX | 10mm |
DIMENSIONS:
| Outside Diameter | 12.72″ (323mm) |
| Cutout Diameter | 11.5″ (292mm) |
| Mounting Depth | 4.19″ (106.30mm) |
(SOLD AS SINGLE)
