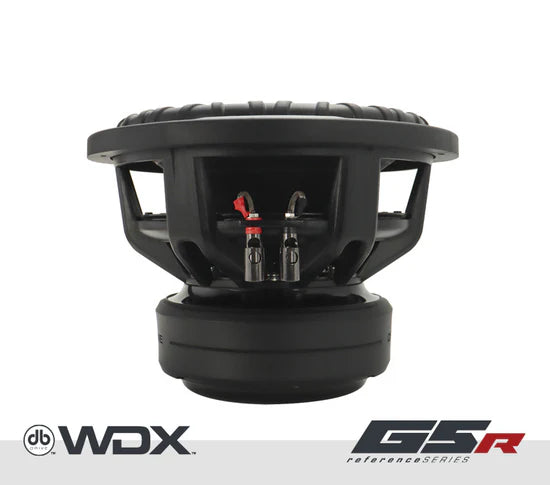

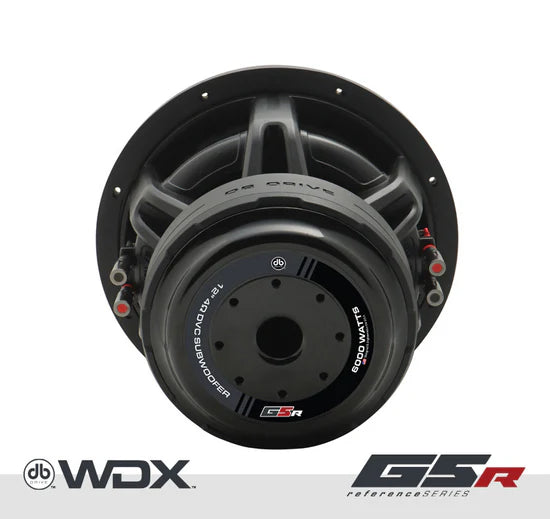

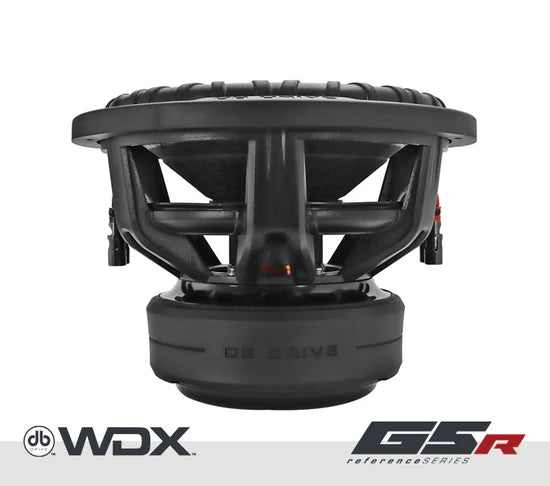

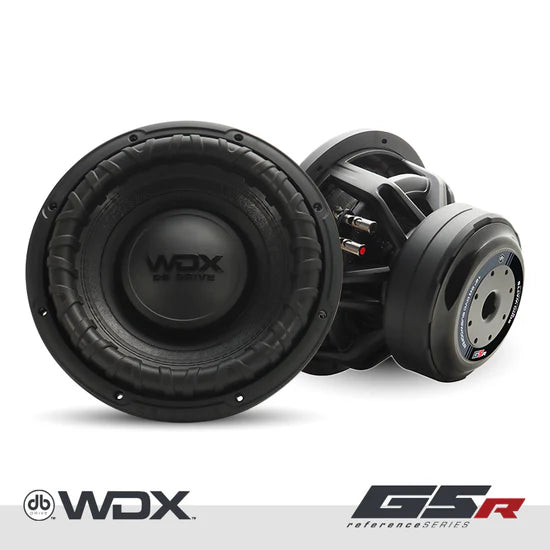

DB Drive WDX12G5 12" Dual 2Ω or 4Ω Subwoofer (Sold as Single)
Dual 2Ω
$699.95
Skip to product information
$699.95
Shipping calculated at checkout.
DB DRIVE WDX12G5R
WDX12G5R : 12 in. Dual 2Ω or 4Ω Subwoofer
The WDX12G5R subwoofer is built for bass enthusiasts seeking precision and power. With a custom mounting gasket to eliminate rear-canceling waves, a custom-tooled aluminum basket for optimal heat dissipation, and a high-excursion motor with Y35 ferrite magnets, it delivers distortion-free, deep bass. Featuring 6000W dynamic power handling (3000W nominal), ribbed surround, and high-temperature voice coils, this subwoofer sets a new standard for impactful sound.
FEATURES:
- 3.0″ 4 layer Anodized aluminum high temperature voice coil
- Non-Pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
SPECIFICATIONS:
| Dynamic Power Handling | 6000 Watts |
| Nominal Power Handling | 3000 Watts |
| Impedance | Dual 2Ω Voice Coil |
| Resonant Frequency (fs) | 38.99Hz |
| D.C. Voice Coil Resistance (Re) | 2 x 2Ω |
| Mechanical Quality Factor (Qms) | 4.166 |
| Electrical Quality Factor (Qes) | 0.606 |
| Total Quality Factor (Qts) | 0.529 |
| Equivalent Air Volume to Cms (Vas) | 21.01 L |
| Mass of Diaphragm/Coil (Mms) | 317.437 kg |
| Force Factor (Bl) | 22.649 |
| Sound Pressure Level (SPL) | 85.0 dB |
DIMENSIONS:
| Outside Diameter | 12.95″ (329mm) |
| Cutout Diameter | 11.18″ (284mm) |
| Mounting Depth | 8.01″ (203.5mm) |
(SOLD AS A SINGLE)
